ProSound™ Bass Plus Acoustic Panels
Sound absorption can be used in any space where reverberation and echo is creating a problem with speech clarity and general noise volume. Typically associated with larger, more cavernous spaces like: offices, meeting rooms, hotels, restaurants, village halls, restaurants, schools, lecture theatres, music studios and rehearsal spaces.
Bass Plus Acoustic Panels offer a high performing solution for situation where increased absorption for lower bass frequencies is required. This can range from home cinemas, music rehearsal room to larger multi use function halls.
Bass Plus panels can also be a very good option for special education needs spaces (SEND) and used to meet the BB93 guildlines. Pupils with hearing impairment, autism and other special needs are often very sensitive to specific types of noise, particularly those with strong tonal, impulsive or intermittent characteristics.
The ProSound Bass Plus panels help by targetting a wider range of sound frequenices in this situation to help improve concertration and attention.
Why Use Bass Plus Panels?
Outstanding sound absorption performance - dramatically improve the room acoustics within any given space
Fast delivery lead times - we're here to provide you with a solution to your room acoustics swiftly and efficiently Manufactured in the UK
(lead times 4 - 7 days)
Straightforward DIY installation - saving you time and money, without the need of extra labour costs
Fixings supplied as standard - all Simple Acoustic Panels are delivered with the required amount of fixings for their size
Fully customisable - enhance the visual appeal of any space with a design and colour of your preference
Industry leading advice and support - whatever your room type, whatever the question, we're here to help
Technical Information
ProSound™ Acoustic Wall Panels:
- Outer acoustic fabric - made to order in custom sizes and colours to fit the aesthetics of any space
- Sound absorbing core - designed to absorb sound energy and dramatically improve room acoustics
- Outstanding sound absorption performance - Class A (40mm thick) and Class C (25mm thick)
- All ProSound Wall Panels are made to order with a maximum width of 1.2m and length of 3m
- Supplied as standard with required amount of impaling clips for easy installation
- Fabric wrapped on all 4 edges with no additional trims required
- High content of recycled materials
- Used to meet BB93 Regulations
Fabric Colours
Cara is a plain weave panel fabric available in a wide selection of commercial colourways. A popular all-round fabric with a textured look designed to be used in a wide variety of settings. The Matt finish makes it less reflective to light and ideal for application where video is being used.
Lucia is an ever-popular crêpe weave synthetic panel fabric. It’s manufactured from 100% recycled polyester, saving virgin raw materials and for a reduced environmental footprint. It has bold and bright colour palette to suit many designs.
Era is a subtle, two tone polyester fabric. The baby herringbone weave offers an understated contemporary texture with bright and sophisticated muted tones.
Sonus is a pressed felt finish that is an ideal accompaniment for a modern interior. Its mottled colour pallet offers a wide range of colours
Swatch samples of fabric can be sent out upon request

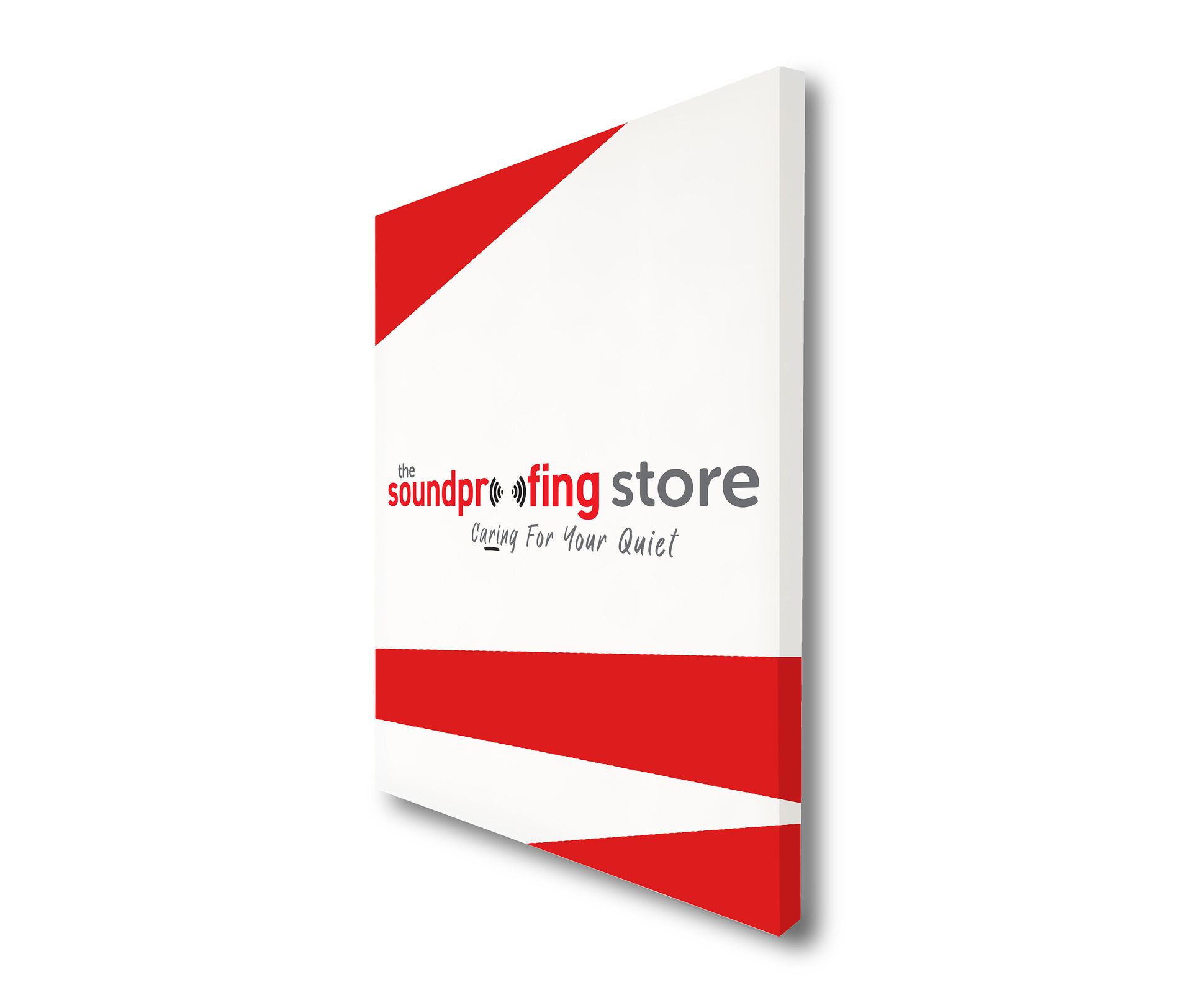

Photo Print Acoustic Panel
Photo print panels are panels with the same Class A sound absorption performance but instead of having a colour fabric wrapped around them they are wrapped in a fabric that has an image printed on it.
You are also able to provide us with your own high resolution photos which then can be applied to the sound absorbing panel.
The image needs to be 360 dpi resolution.
Please contact us for costings.

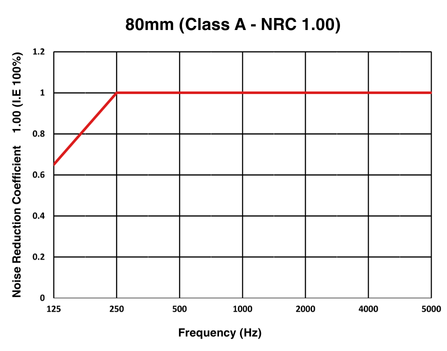

Acoustic Performance BS EN ISO 354: 2003
Performance based on panel fixed directly to wall
ProSound™ Bass Plus Acoustic Panels come in 80mm thicknesses:
- 80mm (Class A - NRC 1.00)
Specifications
Sizes:
All ProSound Wall Panels are made to order with a maximum width of 1.2m and length 2.7m
In 80mm thick Class "A" Absorption
Weight:
ProSound 80 mm wall panels weigh Approx. 10kg/m2
Cleaning:
Light dirt marks can be removed by using proprietary spot cleaner. A small area should be tested first before doing the full panel to ensure that the fabric will not discolour from the cleaner.
Fire:
All standard panel fabrics are ‘Class 1’ for the Surface Spread of Flame in accordance with BS 476-7 or to EN13501-1 - B,s2, d0
ProSound™ Panel Core Board is tested to EN13501-1 - A2 -s1, d0
Class O / EN13501-1 - B,s1, d0 covering fabrics are also available upon request
Ready To Take The Next Step?
If you need help calculating material quantities
Need some guidance? Speak to our friendly team of experts
We don’t expect you to become an overnight sound absorption expert, that’s what we’re here for.
Sound Absorption FAQs
Visit the Knowledge Hub for more in depth info about how sound absorption works
