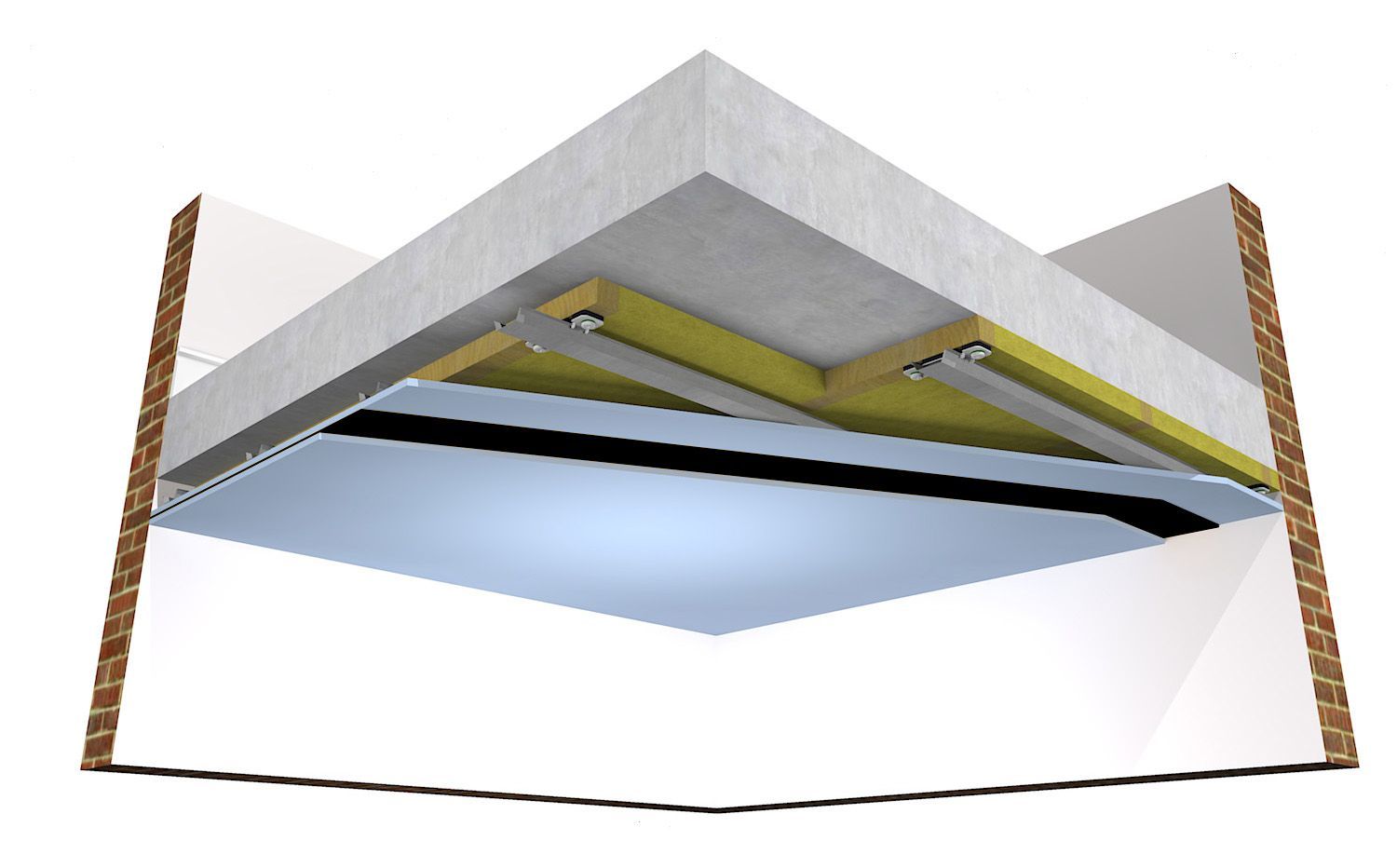

ProSound™ ReductoClip Concrete Ceiling System
Tried, tested and proven to reduce unwanted noise from noisy neighbours. The ReductoClip Concrete Ceiling System (with timber battens) is engineered to enable you to achieve peace and quiet in your home.
The addition of high levels of mass and resilience help to dampen sound energy and vibration with minimal loss of height to the existing ceiling.
Whether you want peace and quiet from noisy neighbours or privacy in your own space, the ReductoClip Concrete Ceiling Solution is the perfect solution.
Why Use The ReductoClip Concrete Ceiling System?
High level of sound reduction - giving you peace, quiet and privacy in your own home
Slimmest system of its kind - saving you space in your room
Straightforward DIY installation - saving you time and money, without the need of extra labour costs
Fast delivery lead times (3-5 working days) - no need to wait for a solution to your noise issue. We're here to make it happen swiftly and efficiently
Industry leading technical support - soundproof with confidence. Whatever the noise issue, whatever the question, we're here to help
The ReductoClip Concrete Ceiling System has been carefully designed so that a competent DIYer can install the system themselves saving on installation costs.
For non DIYers, a local tradesperson such as a builder or joiner will have the necessary skill to install the system for you following our detailed installation guide and video.
Our team of highly trained and experienced soundproofing professionals are also on hand to offer technical support and answer any installation questions.
Technical Information

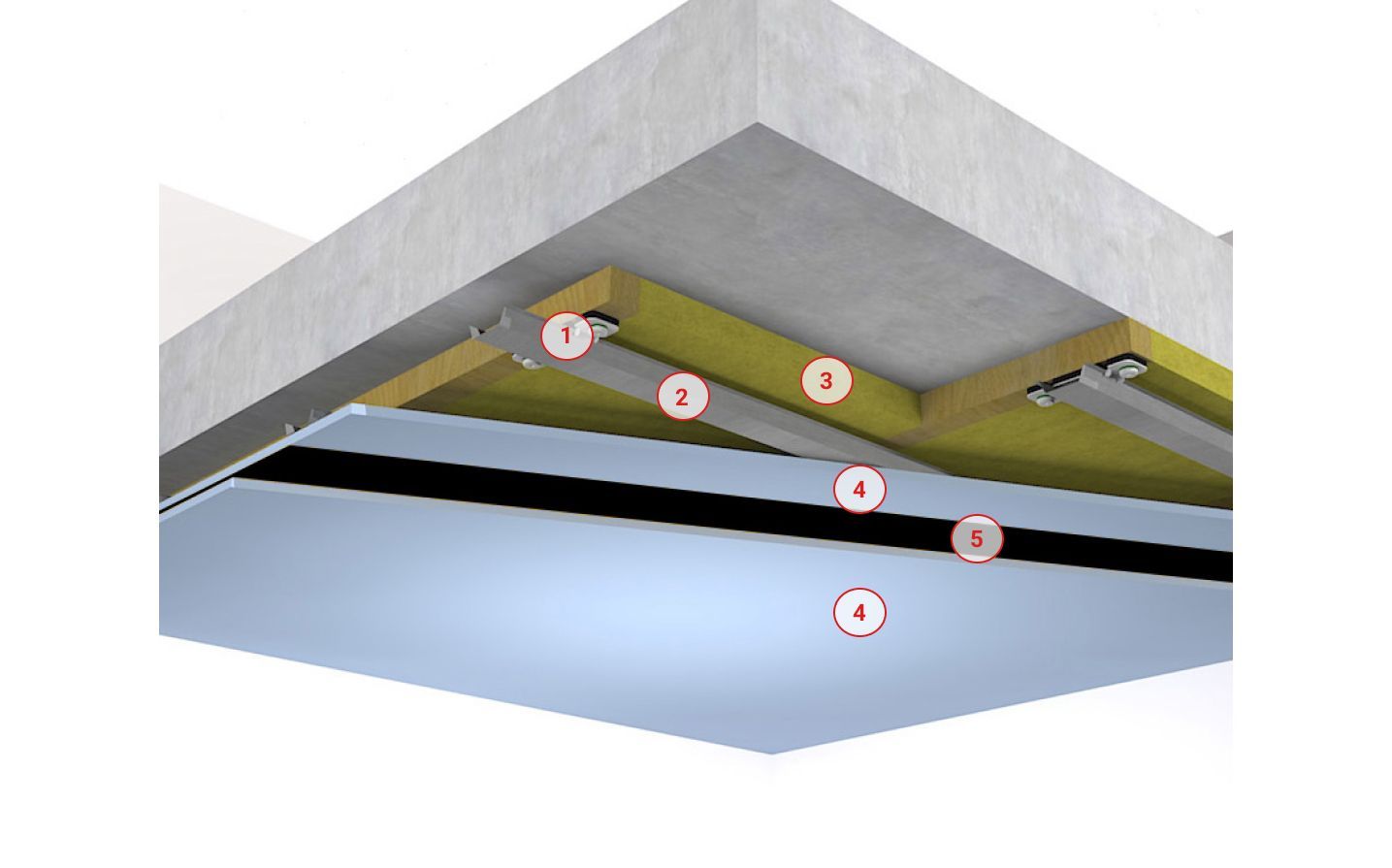

110mm of high performing sound reduction engineering
1. ReductoClips - decouple the mass layers from the timber joists and act like a shock absorbing suspension system to dampen high levels of sound energy and vibration
2. ReductoClip Furring Channels - extra wide to make fixing acoustic plasterboards quicker and easier
3. Acoustic Mineral Wool - dampens sound within the cavity to stop sound amplifying
4. Acoustic Plasterboard - (2 layers) to increase the mass of the ceiling. More mass and density than standard plasterboard but with the same finishing and decorating techniques
5. FlexiSound 5 - viscoelastic membrane to add further mass to the ceiling. A different type of mass to reduce different sound frequencies to the other layers. FlexiSound also helps to dampen sound energy and vibration
6. Timber Battens - To support mineral wool and give a better fixing point for the ReductoClips
Real World Site Test
Tested on 200mm concrete slab
Airborne Performance
(Higher the figure the better)
74dB (DnT,w)
70dB (DnT,w+Ctr) Includes correction for low frequency performance.
Airborne sound reduction of untreated concrete ceiling:
59dB (DnT,w) / 54dB (DnT,w+Ctr)
Airborne improvement with treatment:
15dB (DnT,w) / 16dB (DnT,w+Ctr)
Impact Performance
(Lower the figure the better)
48dB (LnT,w)
Impact sound reduction of untreated concrete ceiling:
76dB (LnT,w)
Impact improvement with treatment:
28dB (LnT,w)
Specifications
Total thickness of system: 110mm
Weight: 35.7kg per m²
Termal Conductivity:
- Plasterboard 15mm: 0.25 W/mK
- FlexiSound 5: 0.037 W/mK
- 60kg Acoustic Mineral Wool: 0.034 W/mK
Thermal Resistance, (R-Value):
- Plasterboard 15mm: 0.060 m² K/W
- FlexiSound 5: 0.14 m² K/W
- 50mm 60kg Acoustic Mineral Wool: 1.45 W/mK
Fire:
- Plasterboard 15mm: EN13501-1: A2-s1, d0
- FlexiSound 5: EN13501-1: C-s3, d0
- 60kg Acoustic Mineral Wool: EN13501-1: A1
Full System Components:
Jumbo Sealant Applicator Gun for 900ml tubes
Self-Drilling Drywall Screws 50mm x 3.5mm (pack of 200)
Self-Drilling Drywall Screws 25mm x 3.5mm (pack of 200)
10m Isolation Strip (Self Adhesive)
Packers 28mm x 5mm (Pack of 25)
Ready To Take The Next Step?
If you need help calculating material quantities
Need some guidance? Speak to our friendly team of experts
We don’t expect you to become an overnight soundproofing expert, that’s what we’re here for.
Ceiling Soundproofing FAQs
Visit the Knowledge Hub for more in depth info about how soundproofing works
