ProSound™ SoundBoard 4™ Soundproofing Panel

The SoundBoard 4 is an unrivalled direct to wall soundproofing panel designed to increase the mass of low mass walls. Extremely effective on stud walls, or low quality brick walls helping to create peace and quiet within your home.


Different layers of mass are cleverly combined in one easy to install product which greatly improves the airborne soundproofing capabilities of low mass structures.


At an incredibly thin 30mm the SoundBoard 4 offers a perfect solution when space constraints from door frames or windows limit the use of other systems.


Download Brochure
SoundBoard 4

Why Use The SoundBoard 4 System?

Tick

Excellent choice for existing low mass structures - improve the soundproofing capabilities of your wall to achieve peace, quiet and privacy within your own home

Tick

Straightforward DIY installation - saving you time and money, without the need of extra labour costs

Tick

Saves you space - when space is an absolute premium, achieve the best result you can with the space you have

Tick

Fast delivery lead times (3-5 working days) - no need to wait for a solution to your noise issue. We're here to make it happen swiftly and efficiently

Tick

Industry leading technical support - soundproof with confidence. Whatever the noise issue, whatever the question, we're here to help

Simple, DIY Installation

The SoundBoard 4 has been designed as a direct to wall solution which means it is extremely straightforward to install.


A competent DIYer can install the system themselves saving on installation costs. For non DIYers, a local tradesperson such as a builder or joiner will have the necessary skill to install the system for you following our detailed installation guide.


Our team of highly trained and experienced soundproofing professionals are also on hand to offer technical support and answer any installation questions.


80% of customers install the SoundBoard 4 themselves

Installation Guide

Simple

DIY Installation

Technical Information

SoundBoard 4

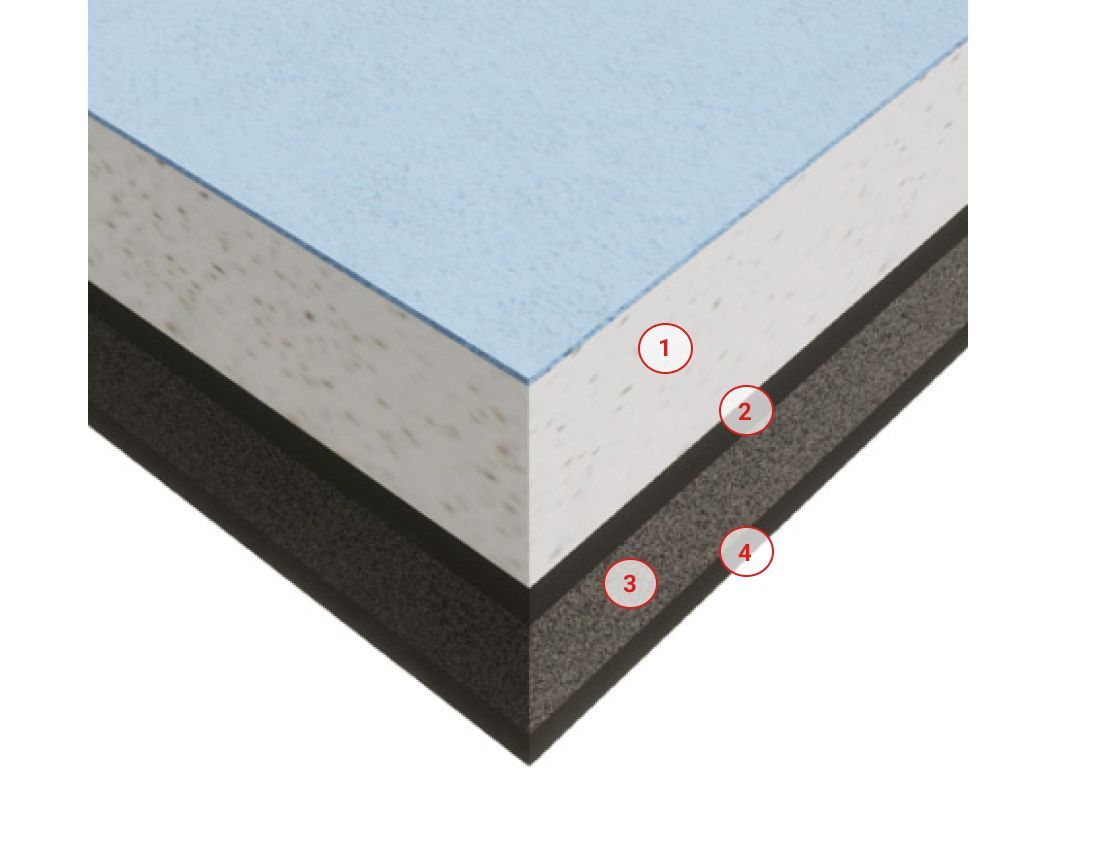

Four layers of soundproofing in one simple solution:


1. 15mm Acoustic Plasterboard - heavier and more dense than standard plasterboard. Adds more mass to the wall to help block airborne noise. The same final finish as standard plasterboard for final decoration


2. 3mm Mass Loaded Vinyl - high mass acoustic barrier to help block airborne noise


3. 9mm Closed Cell Foam - dampens sound energy and vibrations


4. 3mm Mass Loaded Vinyl - a second layer of high mass to further block airborne noise

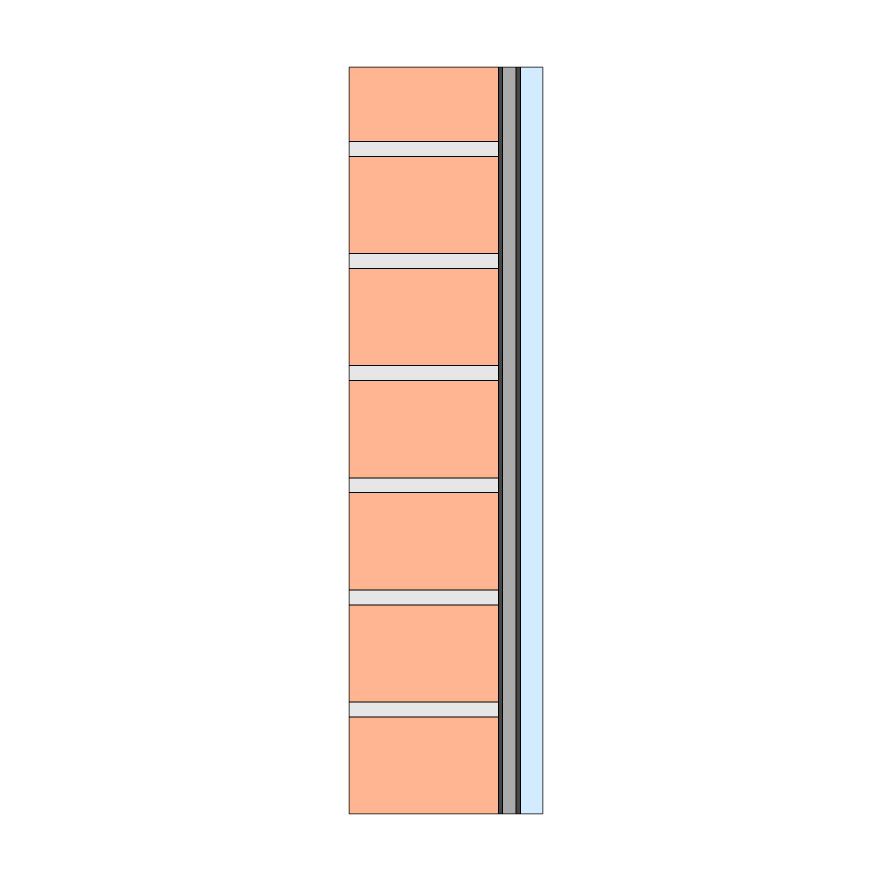

ProSound SoundBoard 4 CAD Profile

Real World Site Test


43dB (DnT,w)

41dB (DnT,w+Ctr) Includes correction for low frequency performance.


Tested on a single skin 100mm brick wall.


Sound reduction of brick wall before treatment:

38dB (DnT,w) / 36dB (DnT,w+Ctr)


Improvement with treatment:

5dB (DnT,w) / 5dB (DnT,w+Ctr)


Part E Building Regulations


SoundBoard 4 can be used to meet Part E building regulations dependent on the construction and quality of the existing wall. Get in touch for a bespoke recommendation for your project.

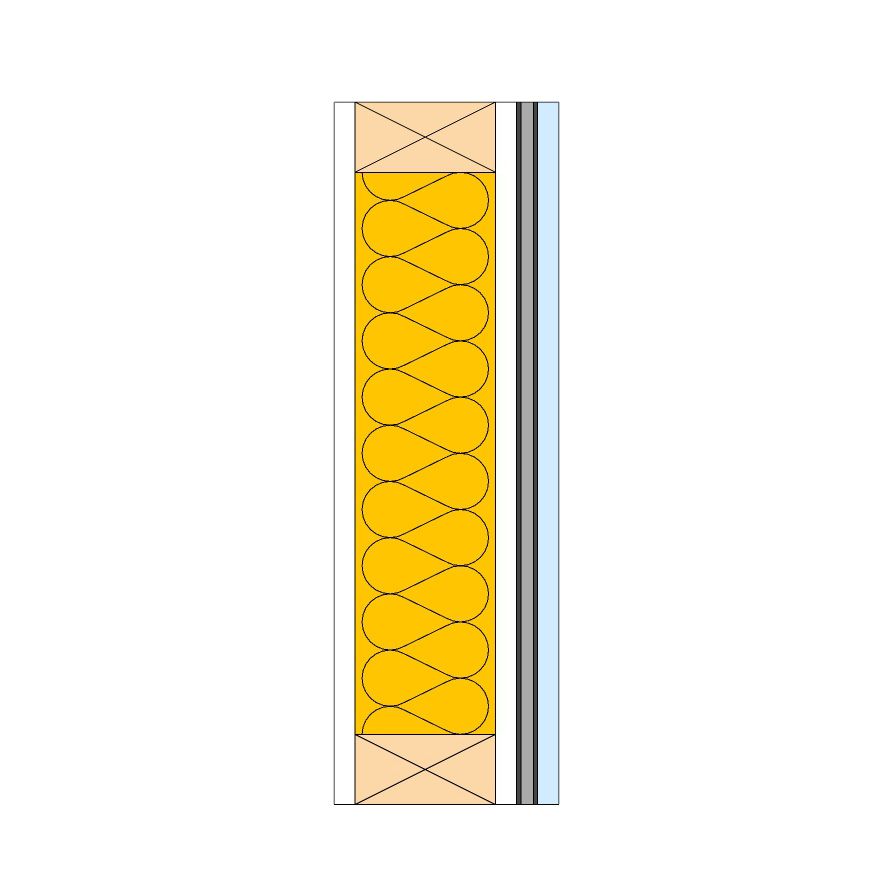

ProSound SoundBoard 4 Stud Wall CAD Profile

Real World Site Test


52dB (DnT,w)

41dB (DnT,w+Ctr) Includes correction for low frequency performance.


Tested on a 100mm stud frame with 100mm acoustic mineral wool and one layer of plasterboard on each face.


Sound reduction of untreated stud wall:

35dB (DnT,w) / 26dB (DnT,w+Ctr)


Improvement with treatment:

17dB (DnT,w) / 15dB (DnT,w+Ctr)


Part E Building Regulations


SoundBoard 4 can be used to meet Part E regulations on a stud wall. SoundBoard 4 should be installed on both sides or on a secondary stud frame. Get in touch with us to talk about your project or download the full performance data using the button below.


Specifications

Total thickness of system: 30mm


Size: 1200mm x 1200mm x 30mm (1.44m²)


Weight:  41kg (28.50kg per m²)


Thermal Conductivity:


  • Plasterboard: 0.25 W/mK
  • MLV: 0.037 W/mK
  • 9mm Closed Cell Foam: 0.039 W/mK

Thermal Resistance:


  • Plasterboard 15mm: 0.060m² K/W
  • MLV: 0.095 m² K/W
  • 9mm Closed Cell Foam: 0.23 m² K/W

Fire:


  • Plasterboard:  EN13501-1: A2-s1, d0
  • MLV: Surface spread of flame is tested to ISO 3795 and FMVSS 302 - Self Extinguishing
  • 9mm Closed Cell Foam: FMVSS 302

Ready To Take The Next Step?

Basket

If you know what you want and are ready to proceed

Buy Now
FAQ's

If you need help calculating material quantities

Request A Quote
contact us

Need some guidance? Speak to our friendly team of experts

Contact Us

We don’t expect you to become an overnight soundproofing expert, that’s what we’re here for.

Ian Baker, The Soundproofing Store
Phil Lyons, The Soundproofing Store
Frankie Fyfe, The Soundproofing Store
Ian Manning, The Soundproofing Store
Talk To An Expert

Wall Soundproofing FAQs

  • Does soundproofing work?

    Our soundproofing systems will reduce noise and are designed to exceed the UK Part E Building Regulations for the passage of sound. The highest performing system is the ReductoClip System for walls.

    No soundproofing will offer 100% reduction, however installing soundproofing will dramatically reduce noisy neighbour noise.

    *dB results will vary depending on several factors.

    Please see our dB blog on why dB results may vary


  • How do I bring electrics through the soundproofing?

    To help eliminate weak spots where socket boxes are to be installed we recommend using our soundproof socket box inserts (acoustic socket putty pads). These are available for 35mm or 47mm depth boxes single and double. For cables and light switches no further soundproofing is necessary apart from sealing any small gaps with acoustic sealant.

  • Do I need to soundproof my chimney breast?

    No, you shouldn't need to add any soundproofing materials to the chimney breast. We normally only soundproof the alcoves of the dividing wall to the sides of your chimney breast.

    Chimney breasts are generally made from a double layer of very dense fire brick. This makes the chimney breast area very high in mass and therefore perform better for soundproofing than the single standard bricks in the alcoves. Please see our dedicated Chimney breast soundproofing blog

  • Can I decorate directly onto SoundBoard 4?

    The SoundBoard 4 has a 15mm acoustic grade plasterboard finish, so standard plasterboard decorating techniques apply. To decorate plasterboard, we normally recommend a skim plaster on top of the plasterboard to cover joins and screw holes. This helps provide a flat even finish which can then be painted directly onto.

    If using wallpaper use a heavy-duty dry lining wallpaper first and then a final wallpaper finish.

  • Do you offer an installation service?

    There are two main options for installing our DIY soundproofing solutions:


    DIY Installation

    • All of our systems have been designed to be DIYable - saving you any unnecessary installation expense
    •  80% of customers install the systems themselves - we've made DIY installation an easy option
    • We supply simple and comprehensive step-by-step installation guides and videos - for fuss free installation
    • Our technical team are on hand to answer any questions and provide installation support - we're here every step of the way

    Using a local tradesperson

    • You're well on your way to noise free living. If installing the system yourself isn't an option, then simply use a local tradesperson
    • We take away any stress of installation by speaking directly to your tradesperson throughout the process
  • Once installed, can I put pictures/decoration on the walls?

    The final layer of the soundproofing is a 15mm acoustic grade plasterboard which is much stronger than standard plasterboard. So the short answer is yes. However, if you are hanging very heavy items more secure fixings may be needed directly into the solid wall.

  • Does soundproofing foam work to block noise?

    A regular question we are asked is 'can you use soundproofing foam (thin egg box foam panels) for soundproofing against noisy neighbours, or when building your own home studio?' Unfortunately, the short answer is no. Please see our foam soundproofing blog for more information
