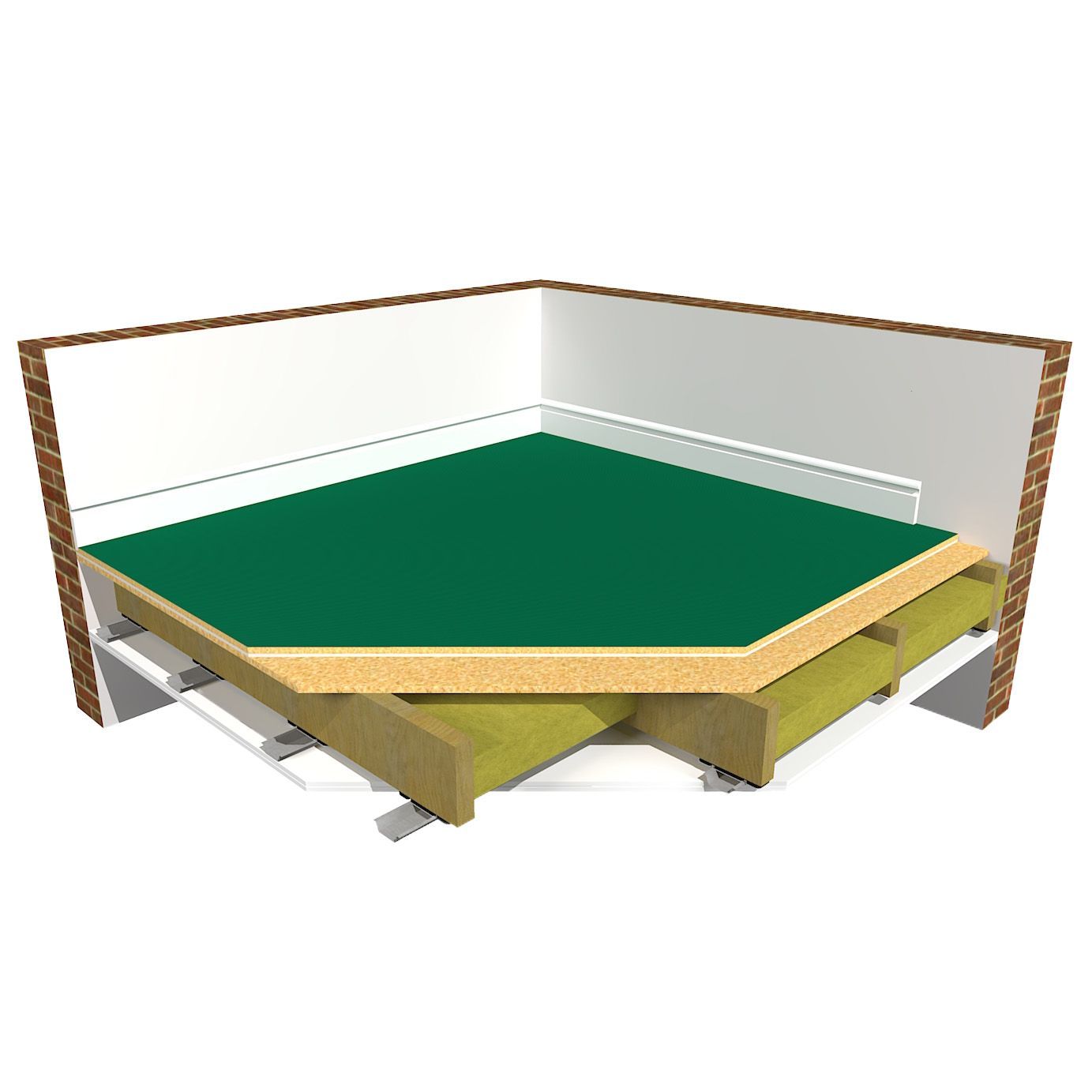

ProSound™ SoundDeck 28
The SoundDeck 28mm is a cost effective solution in reducing impact and airborne noise on timber floor structures. Commonly used as an overlay board floating on top of existing timber floorboards. It can also be used directly on floor joists as an upgraded floorboard replacement.
Particularly suited to passing Part E Building Regulations with a resilient acoustic ceiling system like the ReductoClip Ceiling Solution below.
SoundDeck 28 provides a strong, level and stable base for hard floor finishes which removes the need for a stabilising layer, helping to reduce installation time and costs.
Whether you require peace and quiet from noisy neighbours living above or below, or privacy between floors within your own home, then SoundDeck 28 is an excellent solution as part of a floor and ceiling system.
Why Use The SoundDeck 28 System?
Good performance - improve the soundproofing capabilities of your floor as part of a full system
Straightforward easy DIY installation - T&G board saving you time and money on installation
Cost effective - a cheaper but thicker alternative to other floor soundproofing solutions
Fast delivery lead times (3-5 working days) - no need to prolong the wait for a solution to your noise issue. We're here to make it happen swiftly and efficiently
Industry leading technical support - Soundproof with confidence. Whatever the noise issue, whatever the question, we're here to help

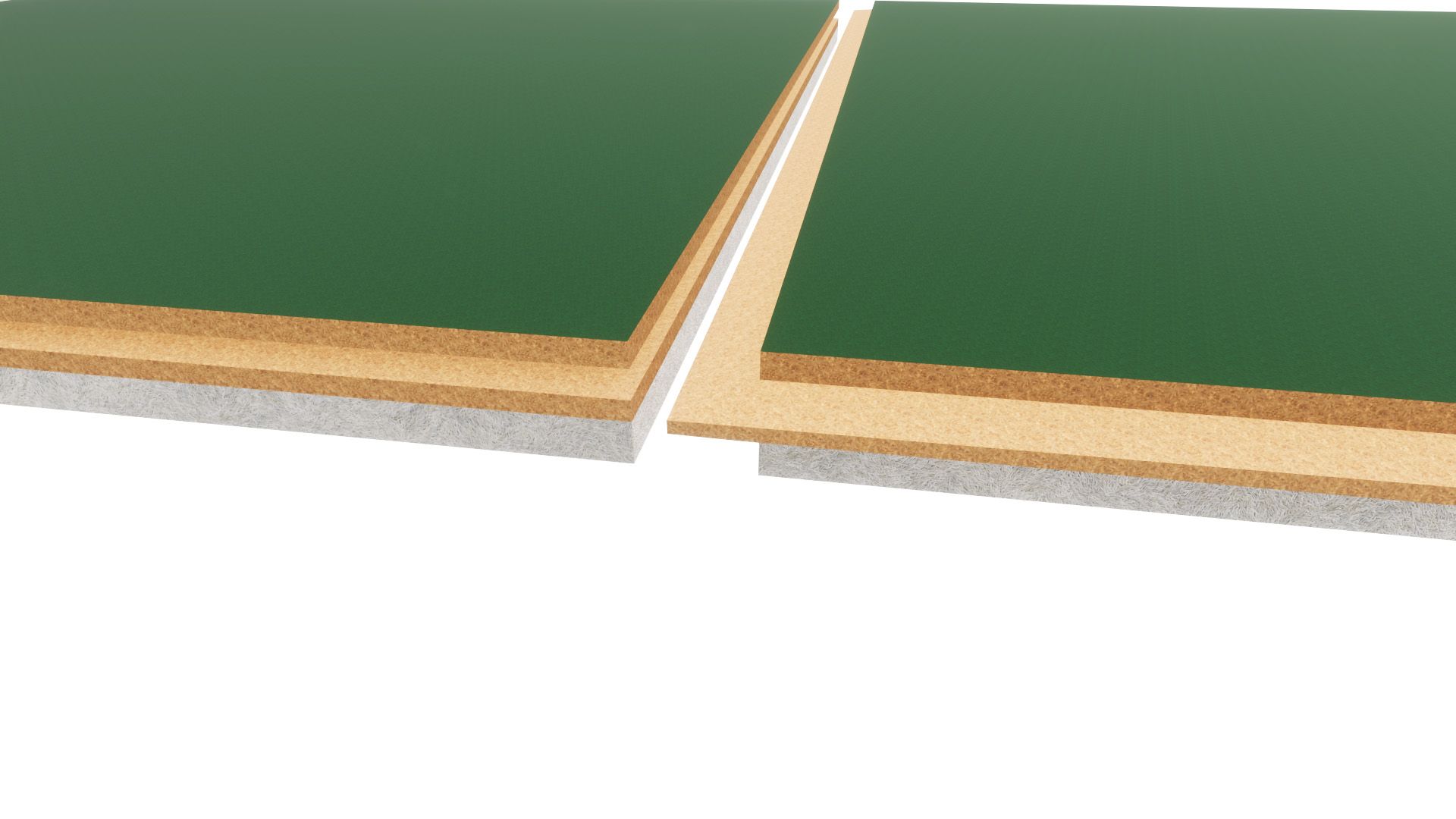

The SoundDeck 28mm has a tongue and groove edge profile ensuring a hassle-free installation process.
A competent DIYer can install the system themselves saving on installation costs. For non DIYers, a local tradesperson such as a builder or joiner will have the necessary skill to install the system for you following our detailed installation guide.
Our team of highly trained and experienced soundproofing professionals are also on hand to offer technical support and answer any installation questions.
Technical Information

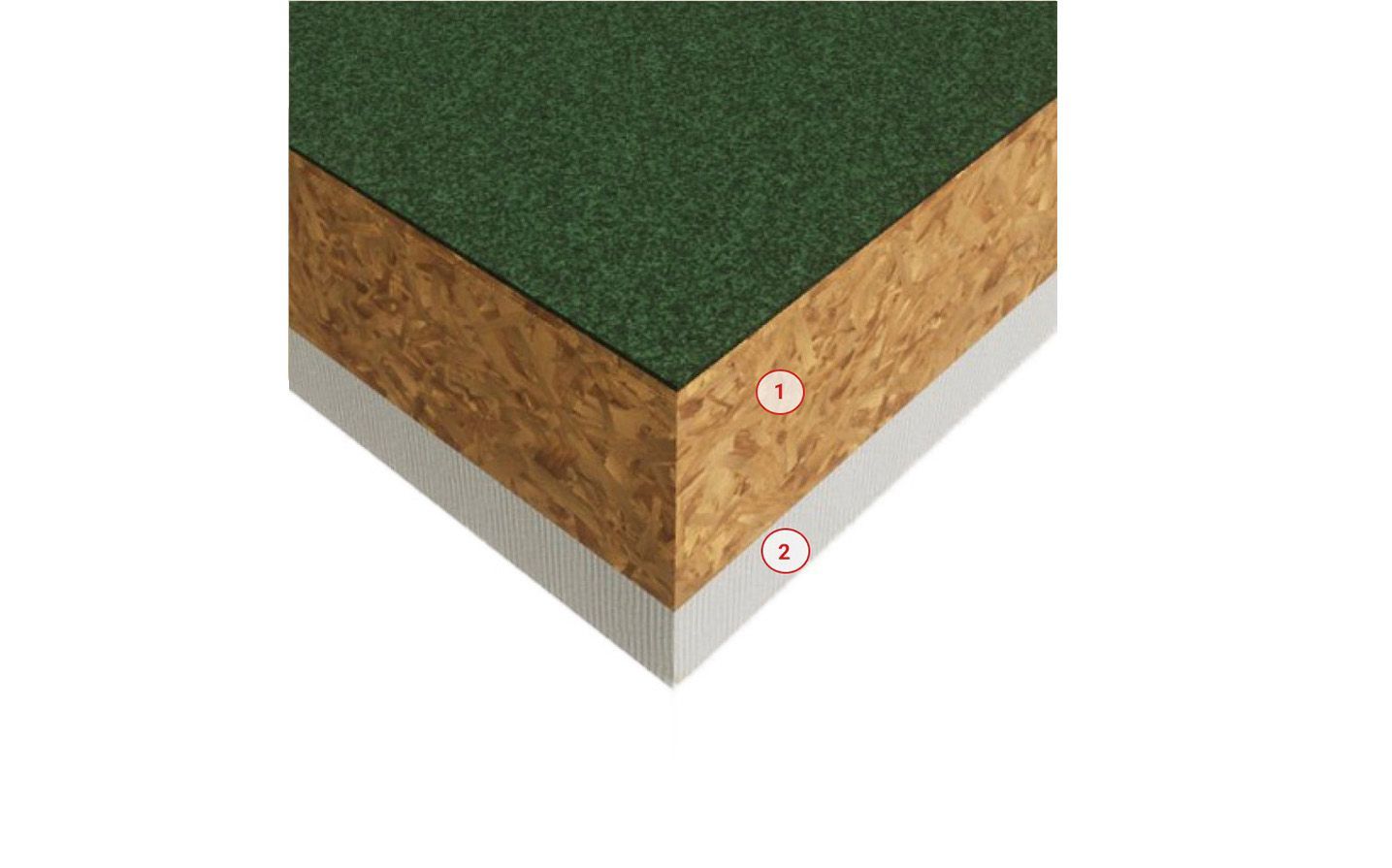

Two layers of sound reduction engineering
1. 18mm P5 Moisture Resistant T&G Chipboard (Certified PEFC & FSC) - with a heat-treated green top surface finish provides a solid stable base for all final floor finishes
2. 10mm PET 100% Twice Recycled Mat - adds resilience to the floor to help reduce impact vibration
Real World Site Test

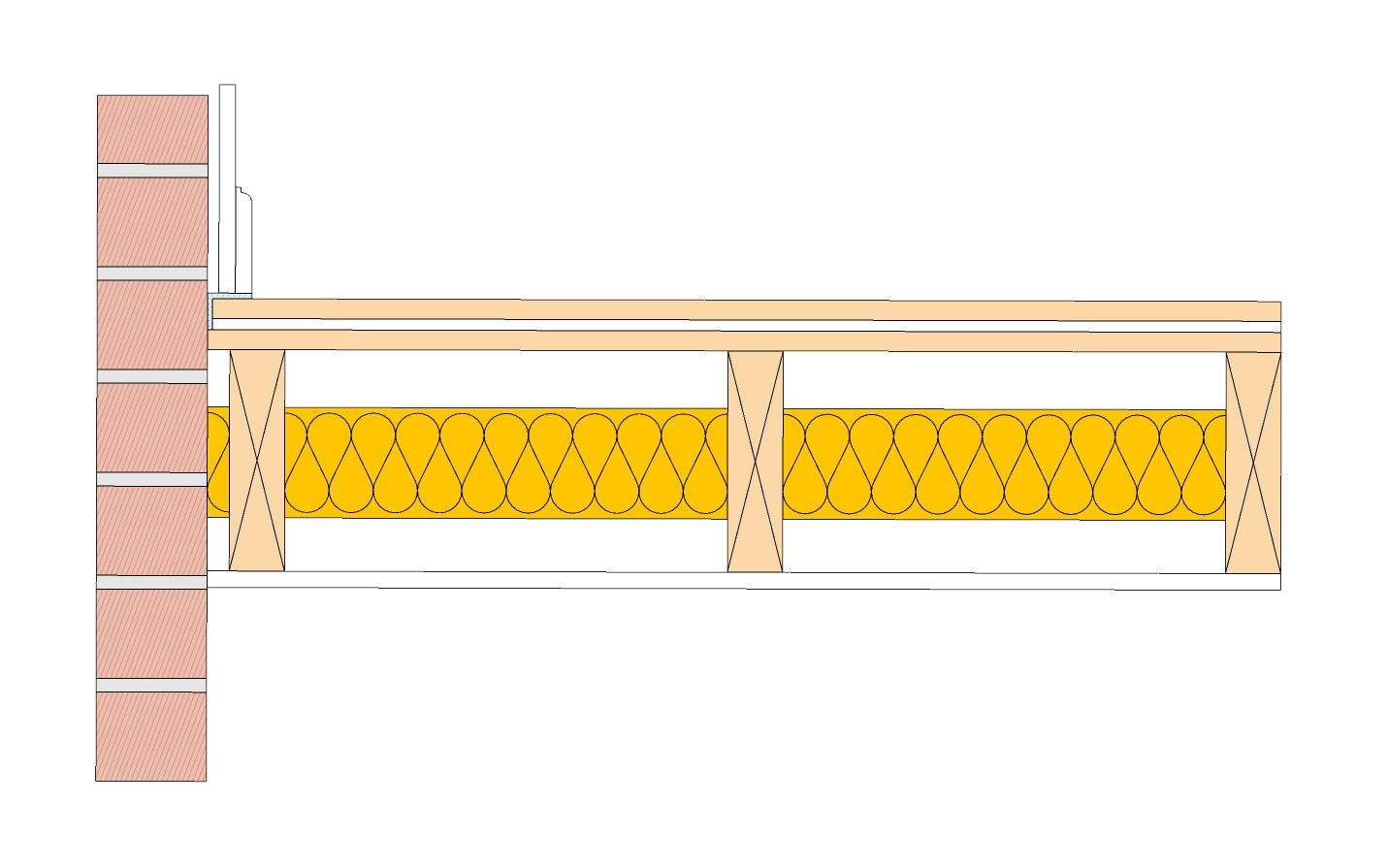

Tested on timber sub floor with one layer of plasterboard directly fixed to underside of joists.
Airborne Performance
(Higher the figure the better)
48dB (DnT,w)
39dB (DnT,w+Ctr) Includes correction for low frequency performance.
Airborne sound reduction of untreated timber floor:
38dB (DnT,w) / 25dB (DnT,w+Ctr)
Airborne improvement with treatment:
10dB (DnT,w) / 14dB (DnT,w+Ctr)
Impact Performance
(Lower the figure the better)
69dB (LnT,w)
Impact sound reduction of untreated timber floor:
82dB (LnT,w)
Impact improvement with treatment:
13dB (LnT,w)

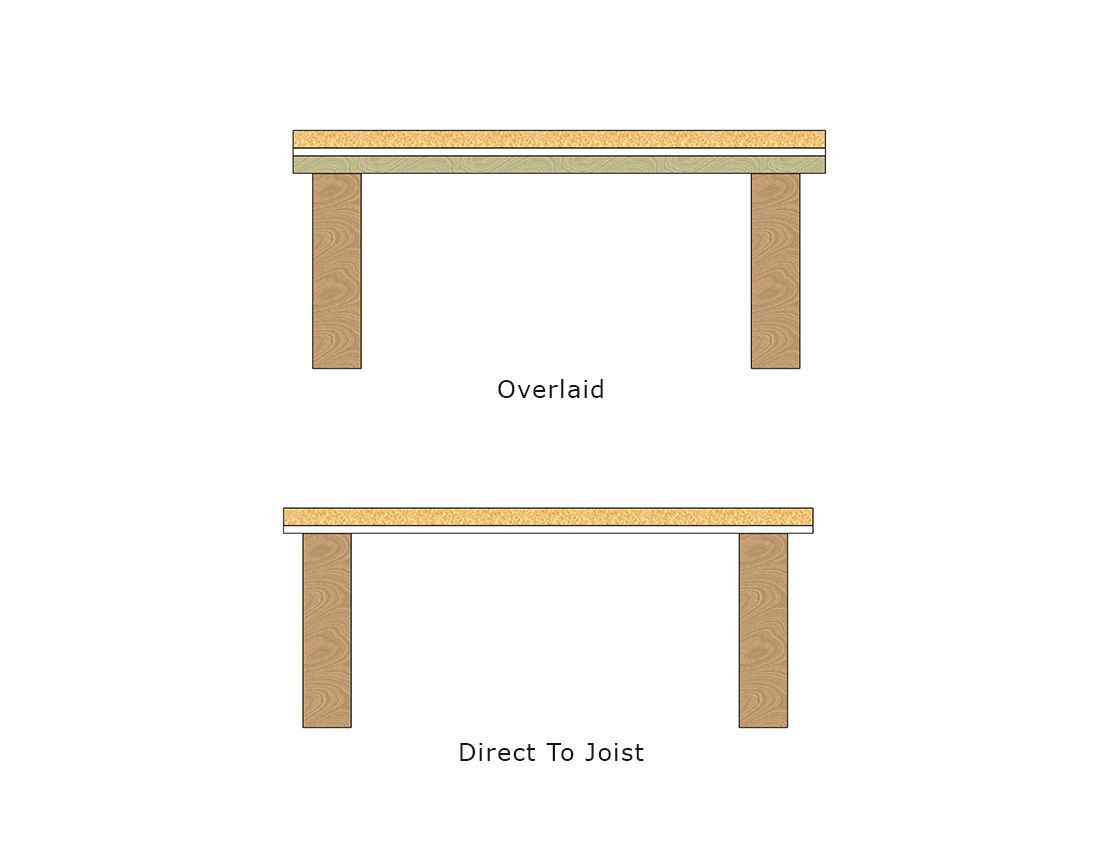

SoundDeck 28 is a dual purpose product that can be used in two different ways:
Overlaid on an existing floor:
Used as an overlay board on an existing solid sub floor when floor height is not restricted.
Direct to floor joists:
To minimise floor height build up
Specifications
- Total thickness of system: 28mm
- Size: 2400mm x 600mm x 28mm (1.44m²)
- Weight: 19.9kg per board (13.8kg per m²)
- Water: P5 water resistant
Thermal Conductivity:
- 18mm P5 Chipboard: 0.15 W/mK
- 10mm PET: 0.16 W/mK
Thermal Resistance:
- 18mm P5 Chipboard: 0.12 m² K/W
- 10mm PET: 0.06 m² K/W
Fire:
- EN13501-1 : D-s2, d0
