ProSound™ SoundScreed 18
SoundScreed 18 is a high mass floor soundproofing solution used to reduce high levels of airborne noise, helping to create peace and quiet within your home.
SoundScreed 18 provides a strong, level and stable base for hard floor finishes which removes the need for a stabilising layer, helping to reduce installation time and costs.

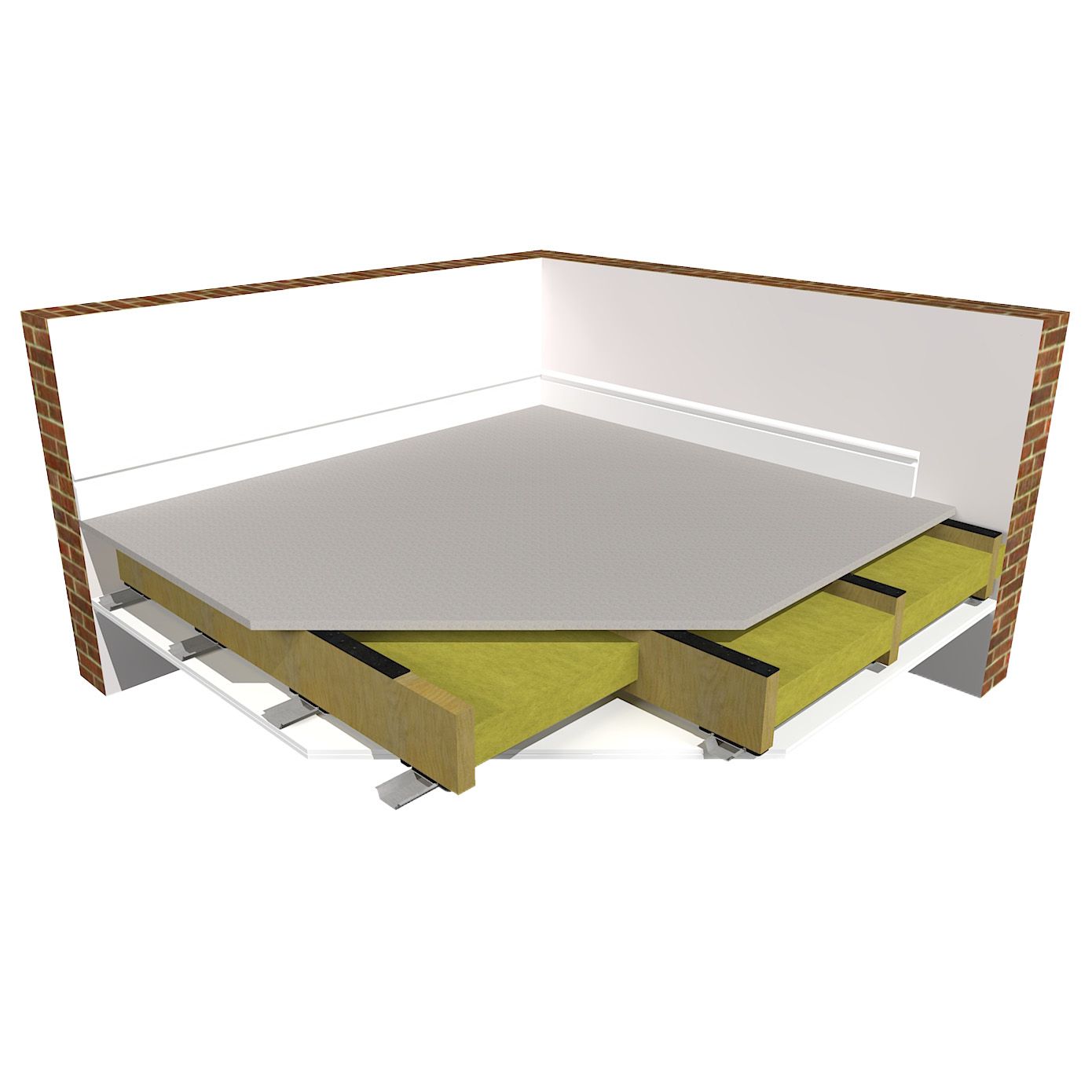

Installed directly onto floor joists replacing existing floorboards (and minimising floor heights) or overlaid onto existing floorboards.
Whether you require peace and quiet from noisy neighbours living above or below, or privacy between floors within your own home, then SoundScreed 18 is an excellent solution.
Why Use The SoundScreed 18 System?
High performance - dramatically improve the airborne soundproofing capabilities of your floor to achieve peace, quiet and privacy within your own home
Straightforward DIY installation - saving you time and money, without the need of extra labour costs
Saves you space - can replace existing floorboards to help minimise floor height build-up
Fast delivery lead times (3-5 working days) - no need to prolong the wait for a solution to your noise issue. We're here to make it happen swiftly and efficiently
Industry leading technical support - Soundproof with confidence. Whatever the noise issue, whatever the question, we're here to help

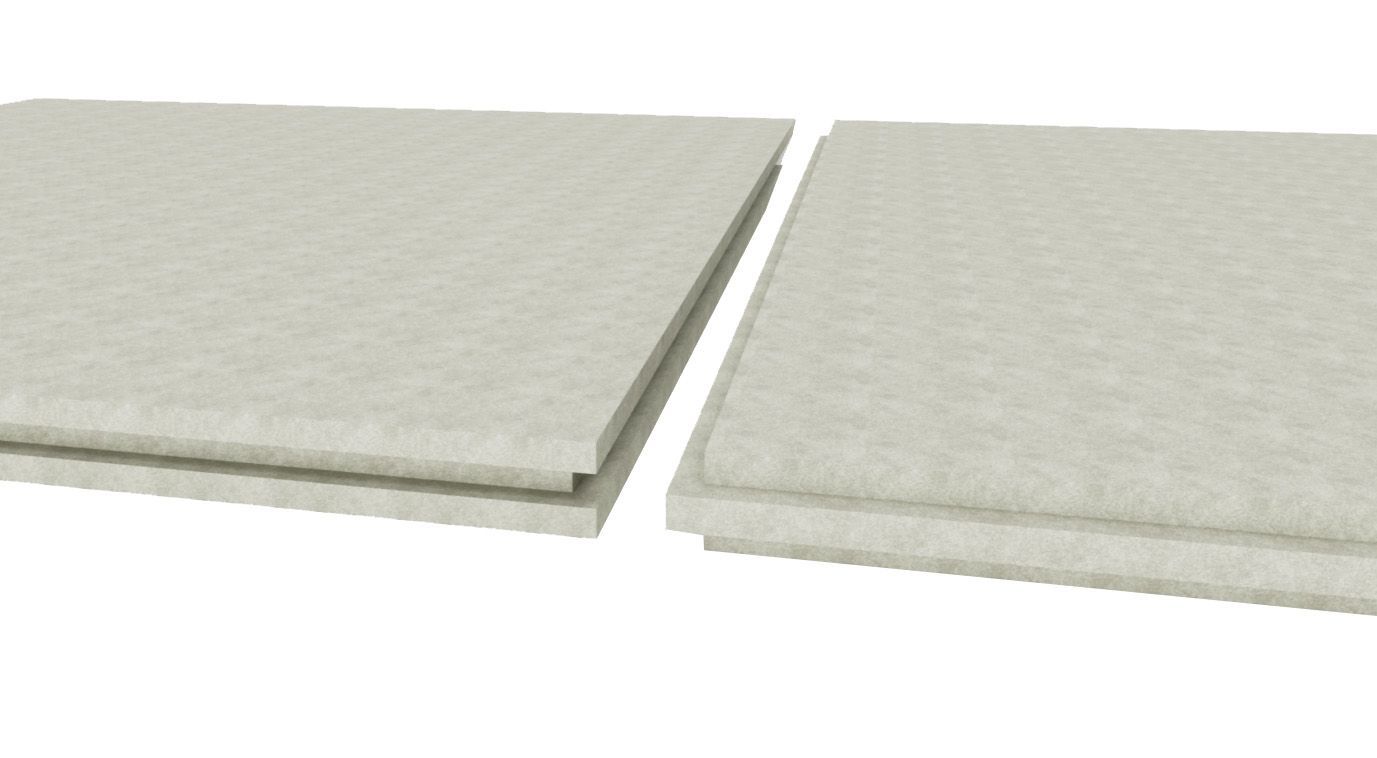

SoundScreed 18 has been designed as a highly effective floor soundproofing solution with the added benefit of tongue and groove on all sides allowing for a straightforward installation.
A competent DIYer can install the system themselves saving on installation costs. For non DIYers, a local tradesperson such as a builder or joiner will easily have the necessary skill to install the system for you following our detailed installation guide.
Our team of highly trained and experienced soundproofing professionals are also on hand to offer technical support and answer any installation questions.
Technical Information

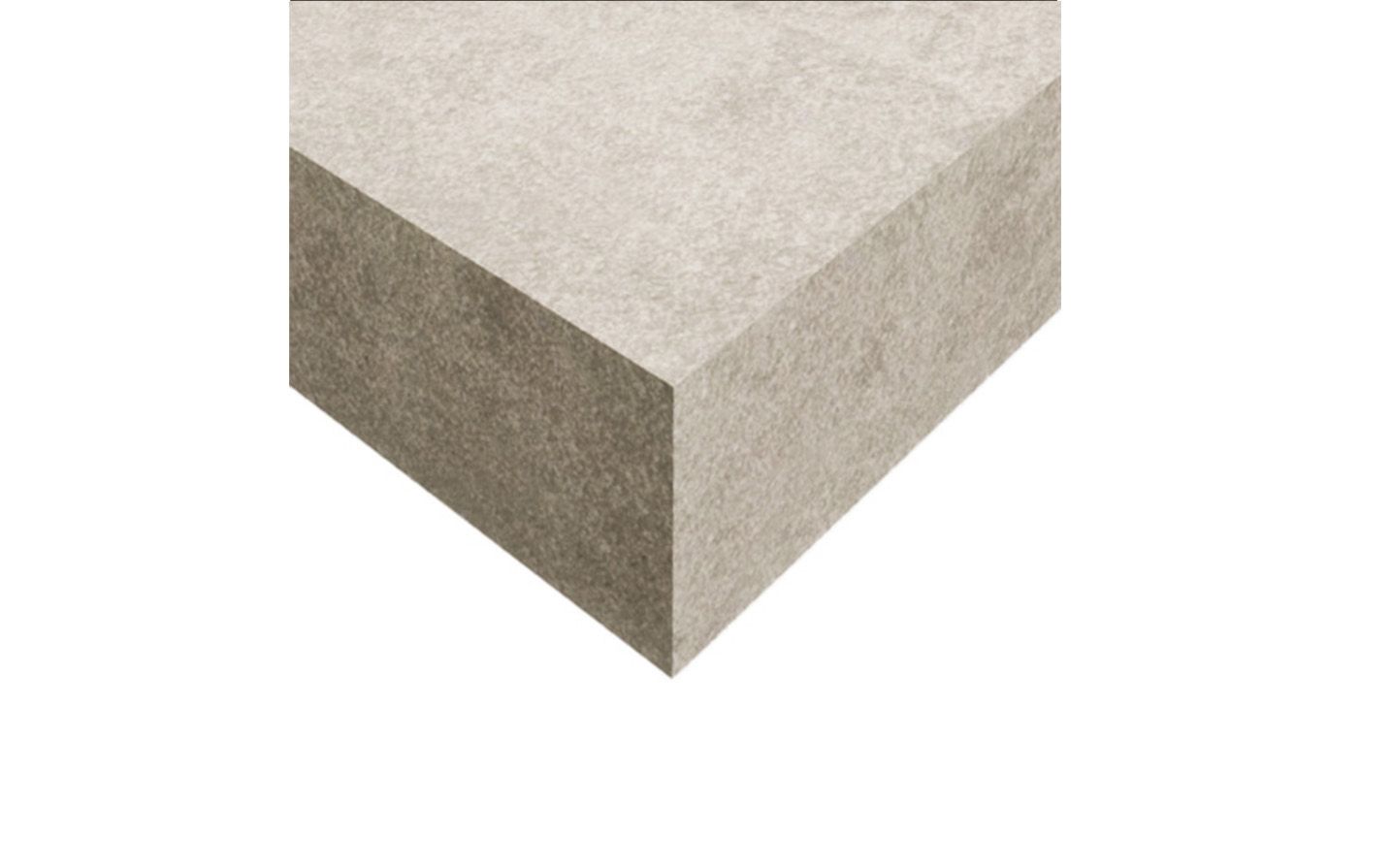

One layer of superior mass and density
18mm Gypsum Flooring Panel - adds more mass to the floor to help block airborne noise
Real World Site Test

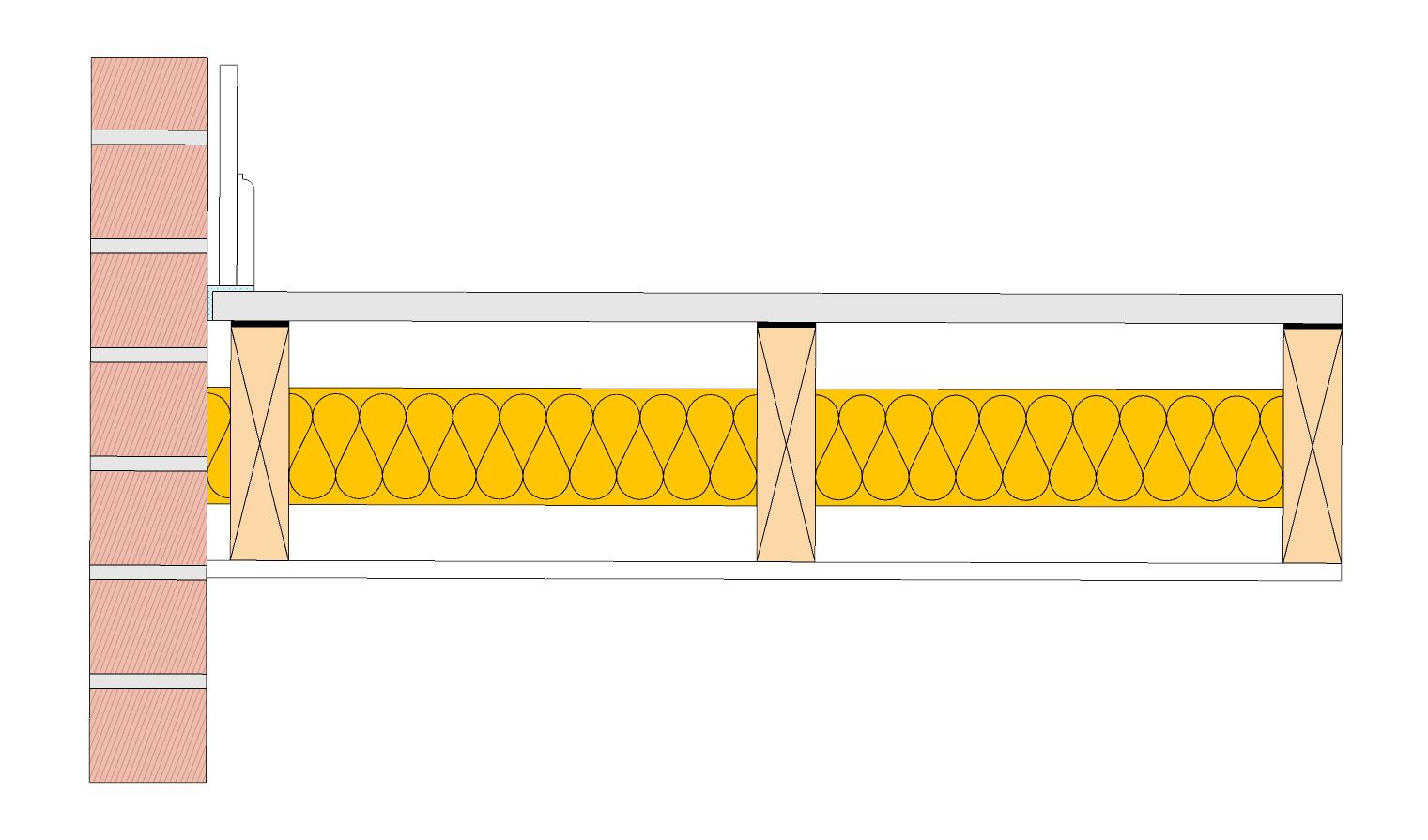

Tested on timber sub floor with one layer of plasterboard directly fixed to underside of joists.
Airborne Performance
(higher the figure the better)
51dB (DnT,w)
44dB (DnT,w+Ctr) Includes correction for low frequency performance.
Airborne sound reduction of untreated timber floor:
38dB (DnT,w) / 25dB (DnT,w+Ctr)
Airborne improvement with treatment:
13dB (DnT,w) / 19dB (DnT,w+Ctr)

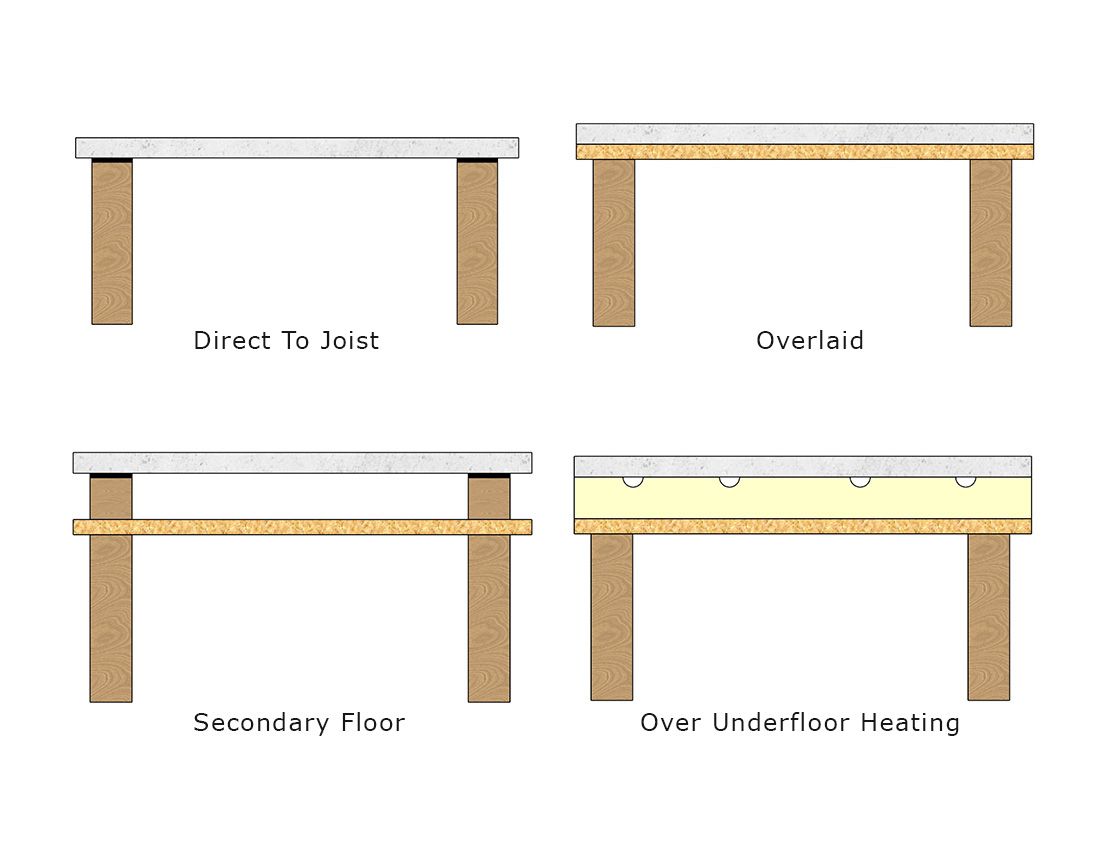

SoundScreed 18 is a multipurpose flooring product that can be utilised in a variety of different situations:
Direct to floor joists:
To minimise floor height build up whilst improving the airborne soundproofing capabilities of the floor
Secondary Floor Battens:
Used as a structural floor on acoustic cradles and isolated secondary floor battens. The use of secondary floor battens will enhance both airborne and impact sound performance
Floating over underfloor heating:
Used as a floating construction on top of thermal insulation (PIR) above underfloor heating systems with a far greater thermal conductivity than standard chipboard floors
Overlaid on an existing floor:
Used as an overlay board on an existing solid sub floor when floor height is not restricted. Impact performance can be improved by the addition of ProSound ImpactoMat 5
Specifications
Total thickness: 18mm
Size: 1200mm x 600mm x 18mm (0.72m²)
Weight: 19.5kg per board (27kg per m²)
Water: Water resistant when primed
Thermal Conductivity: 0.44 W/mK
Thermal Resistance: 0.040m² K/W
Fire: EN13501-1 : A1
